Custom Mini PC Solutions:
From Mini PCs to Servers
Unleash the power of compact computing!
Mini PC where small footprint meets extraordinary capabilities.
Big things come in small packages.
Mini PC: revolutionize your workspace with high – end performance in a pint – sized device.
Ditch the bulk, keep the speed.
Our mini PC redefines efficiency, fitting seamlessly into your digital life.
Products

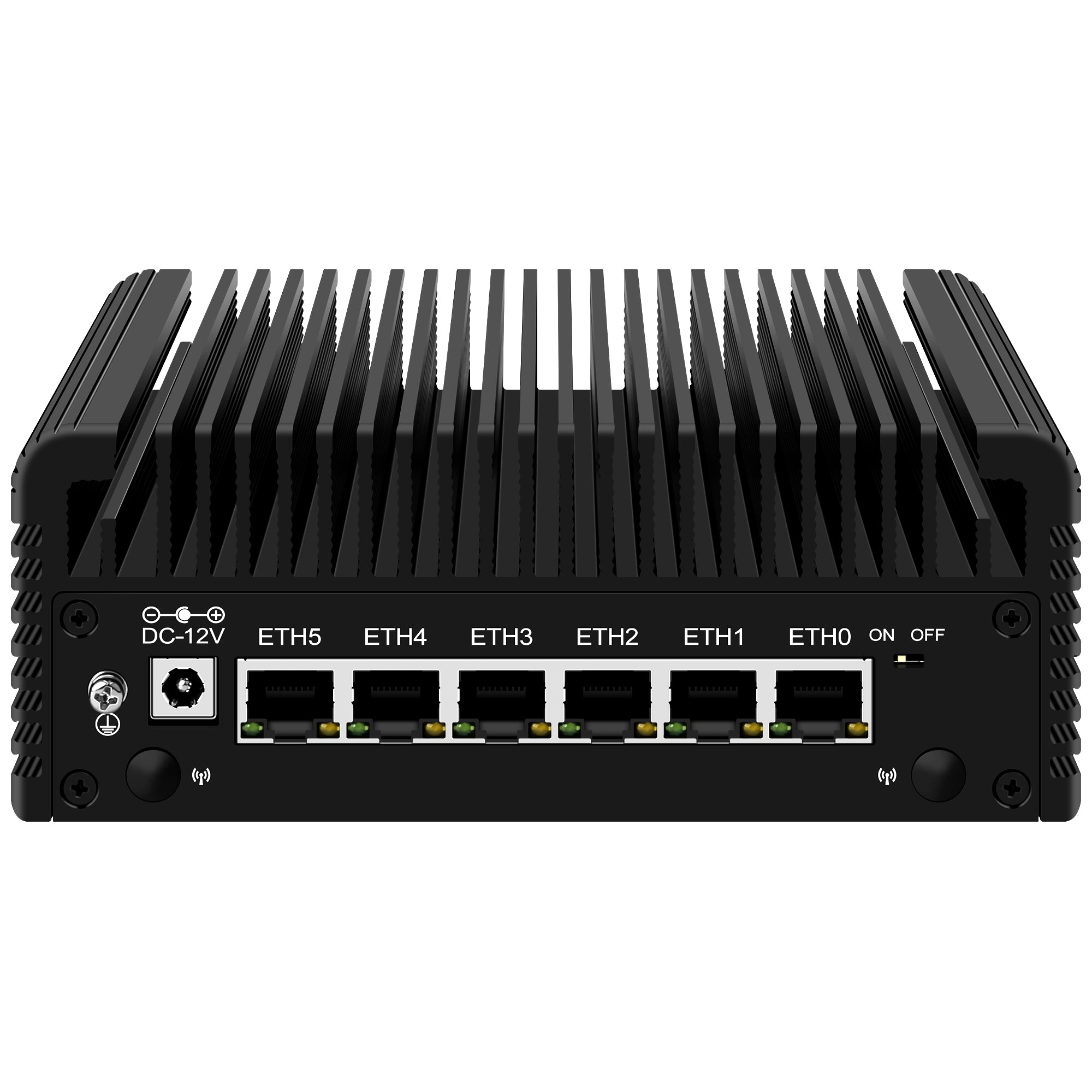

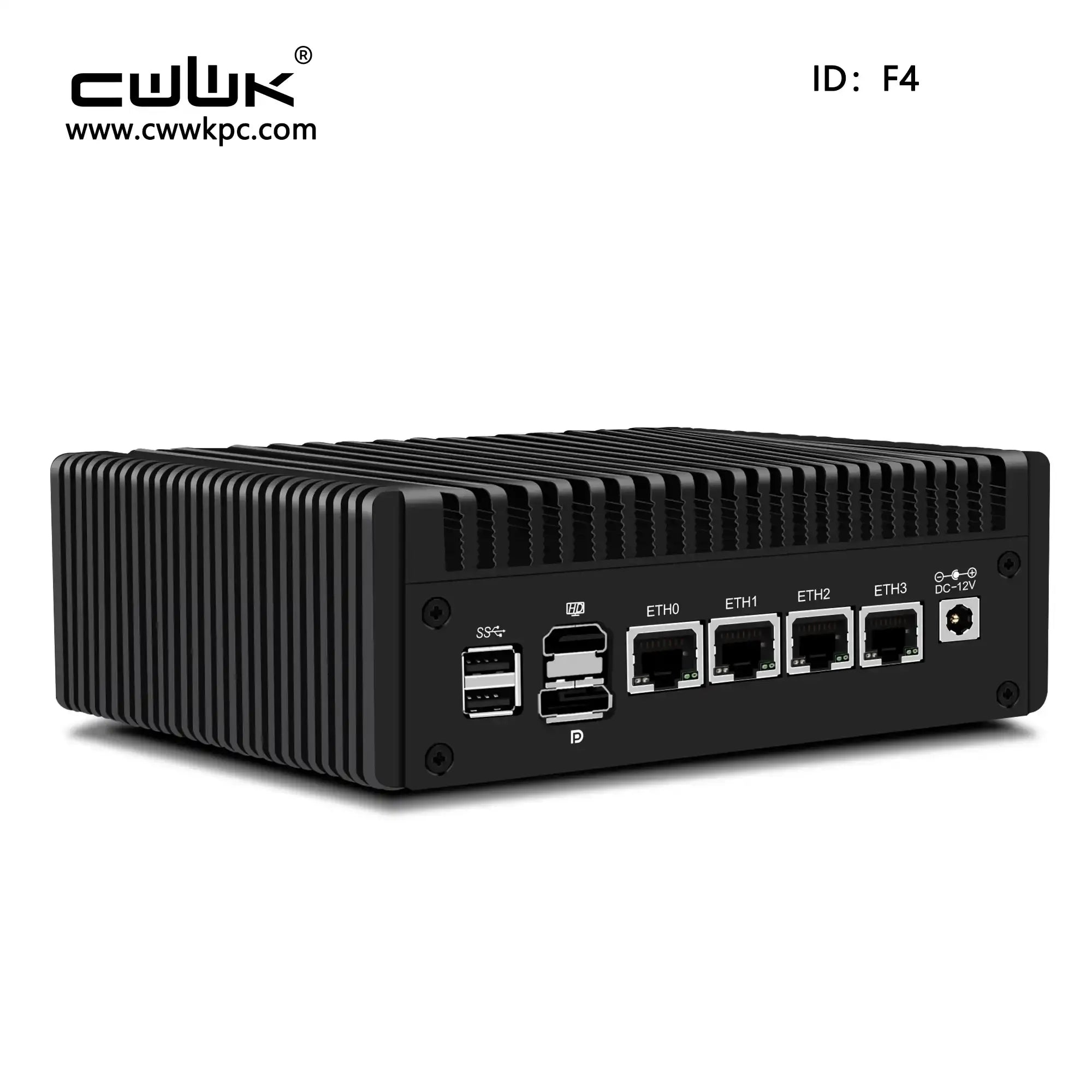

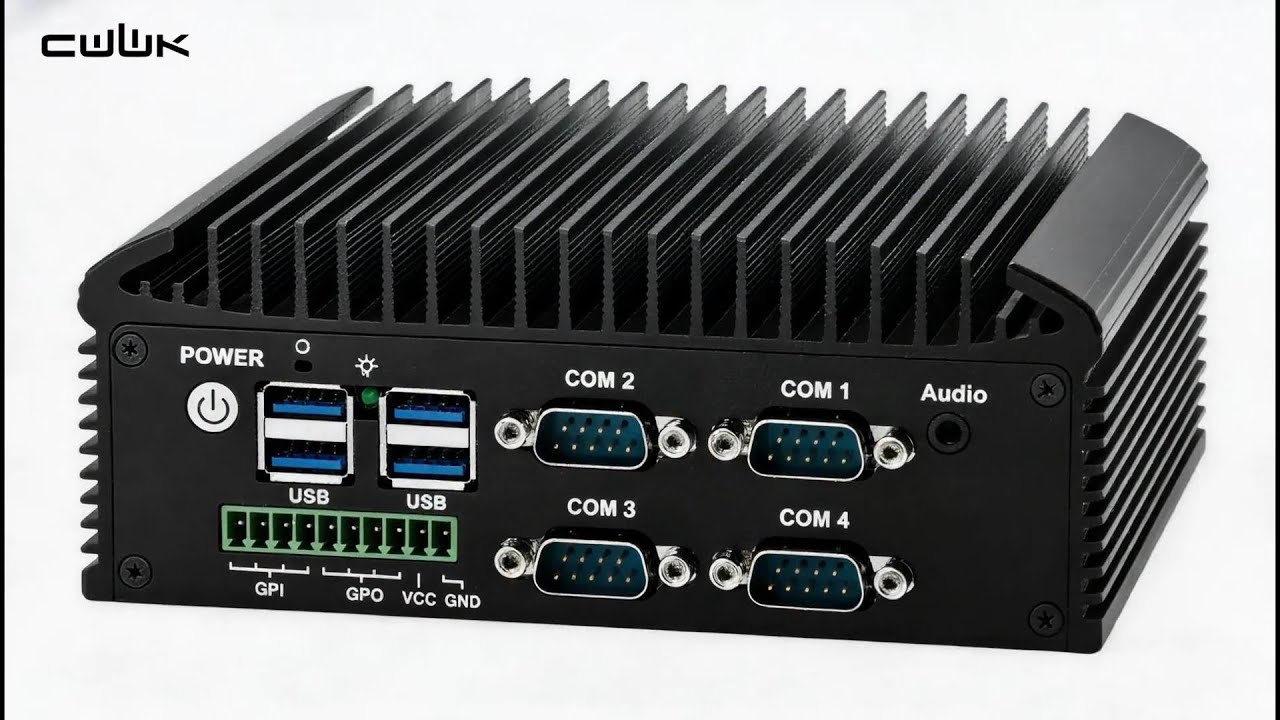

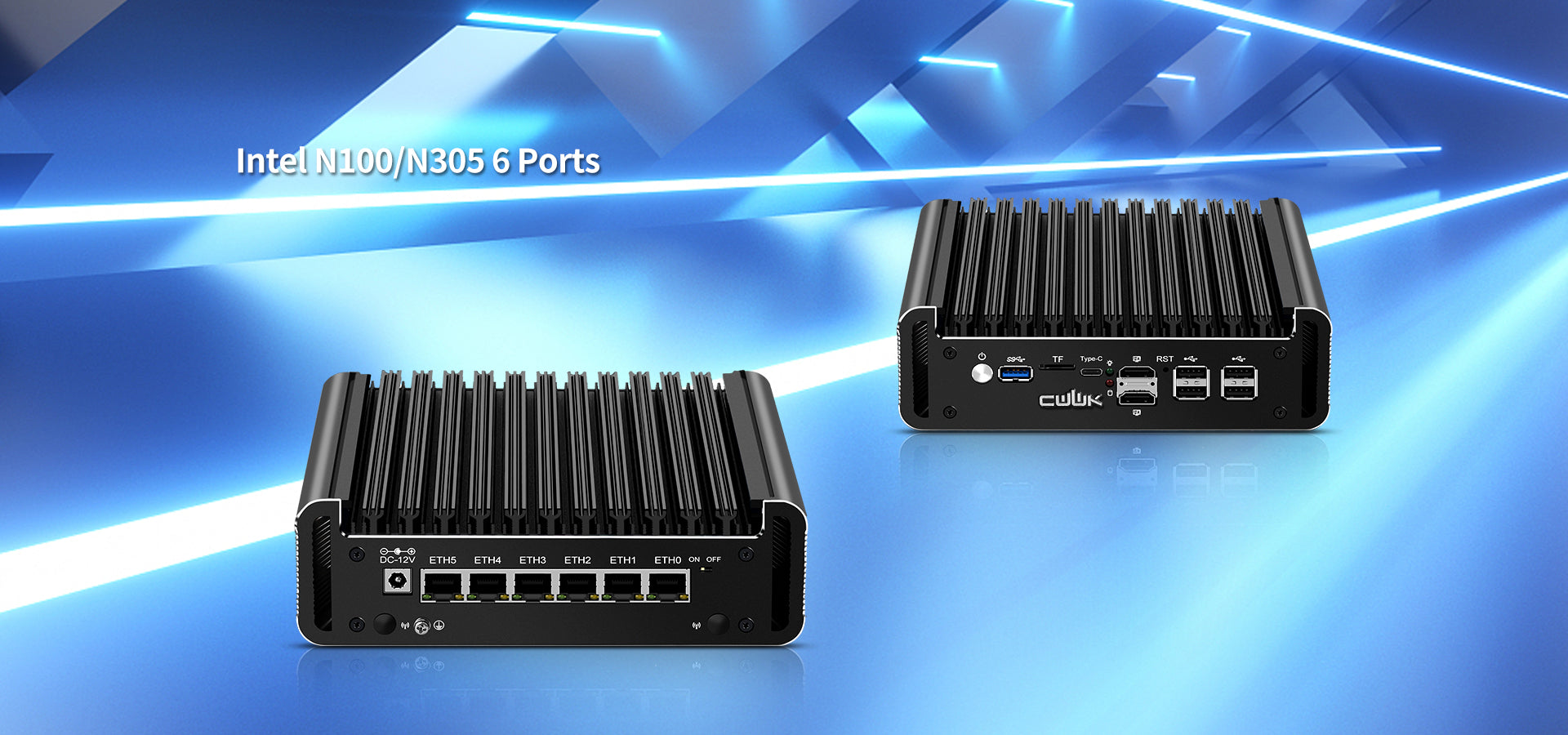

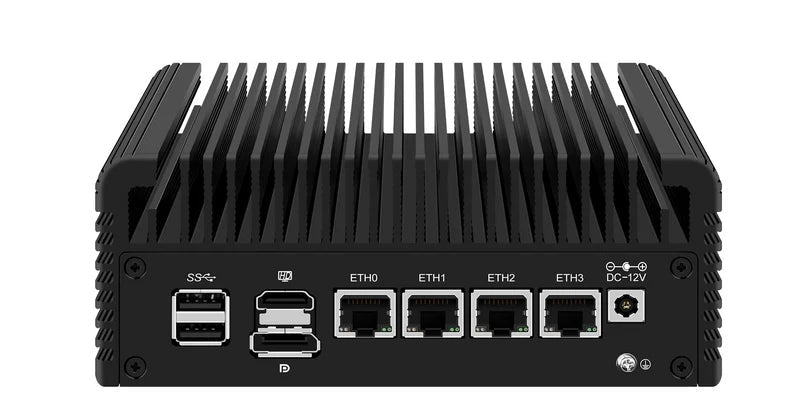

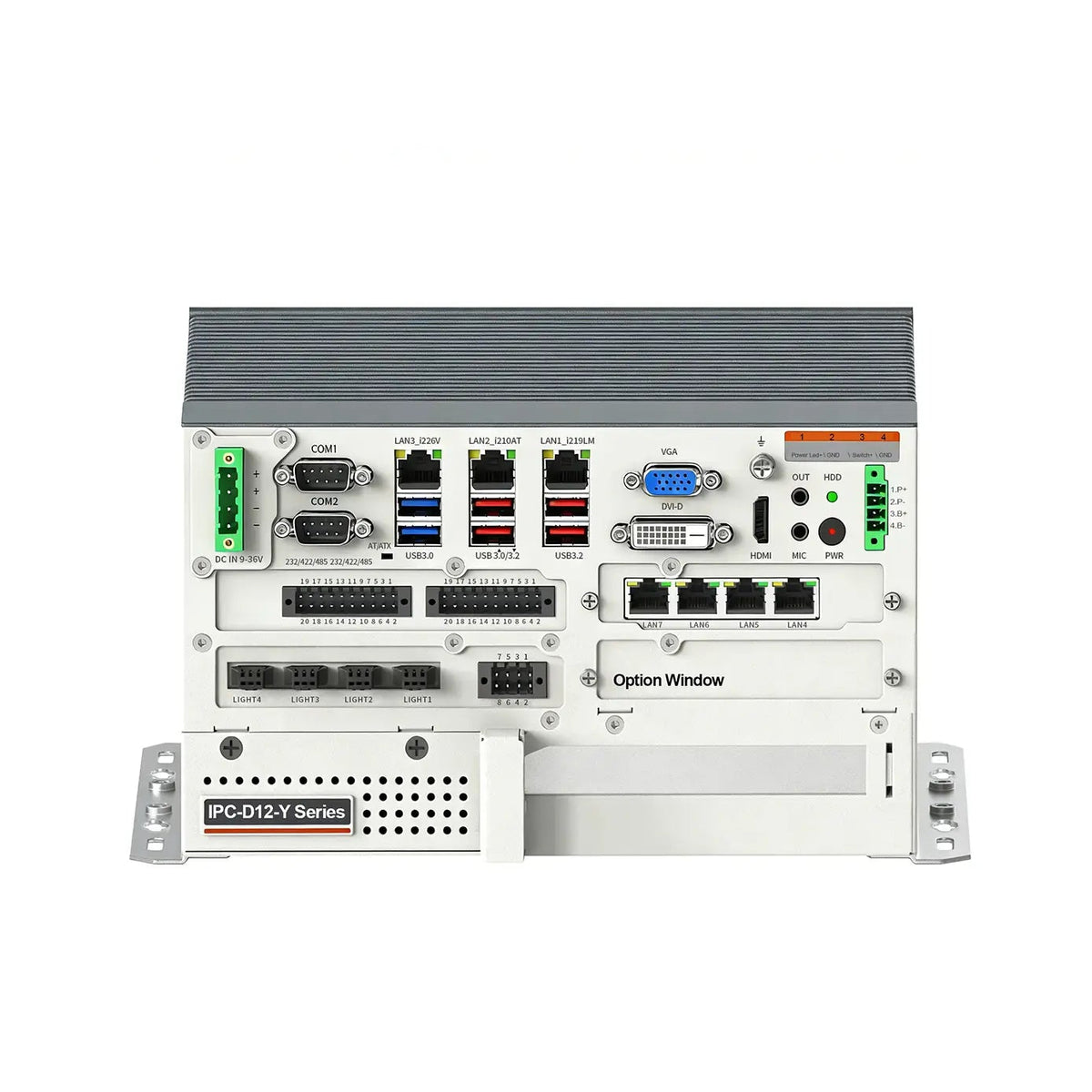

Fanless, rugged, and compact, built forautomation, Al, and industrial control. Featureslow power consumption, high-performancecomputing, and extended lifespan for demandingapplications.

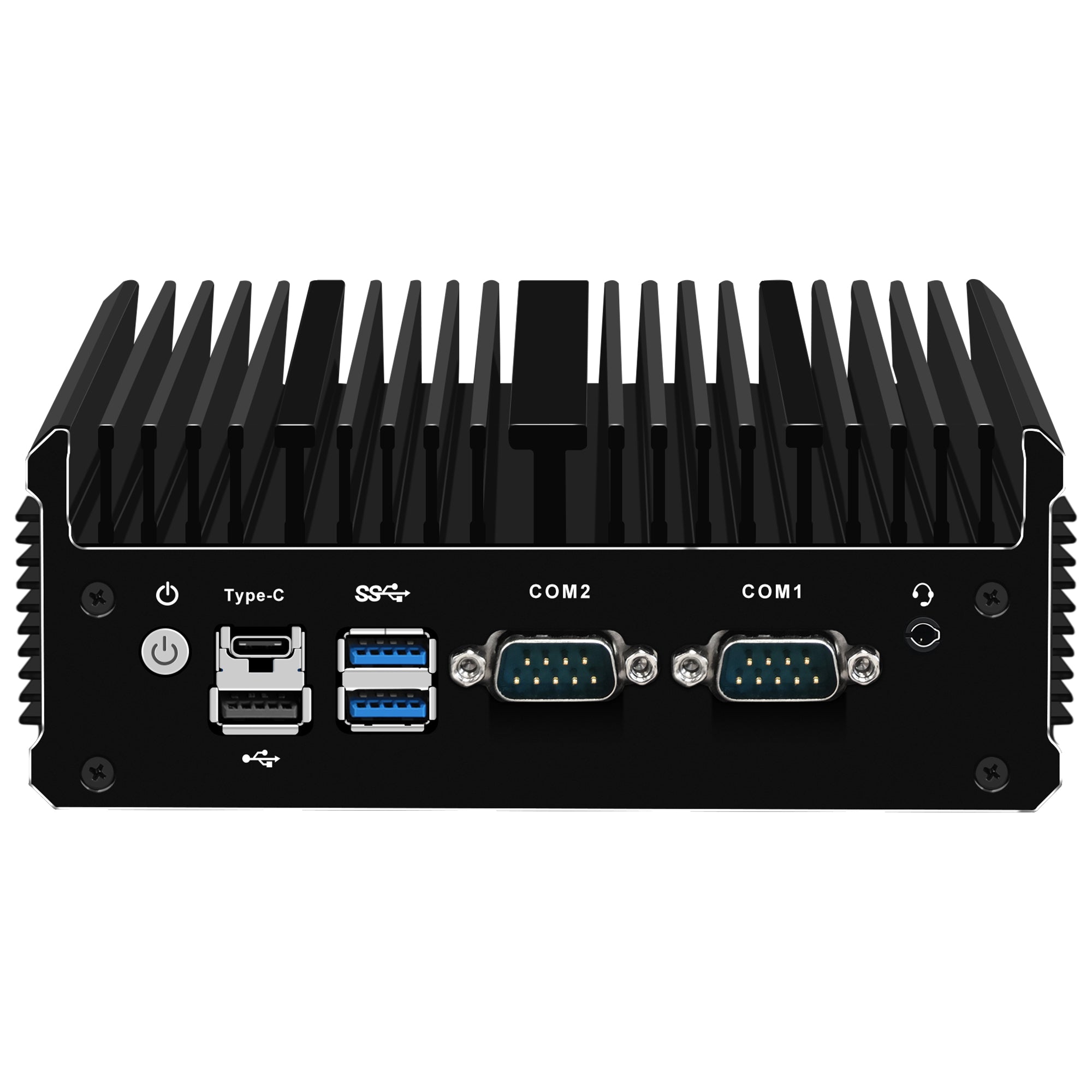

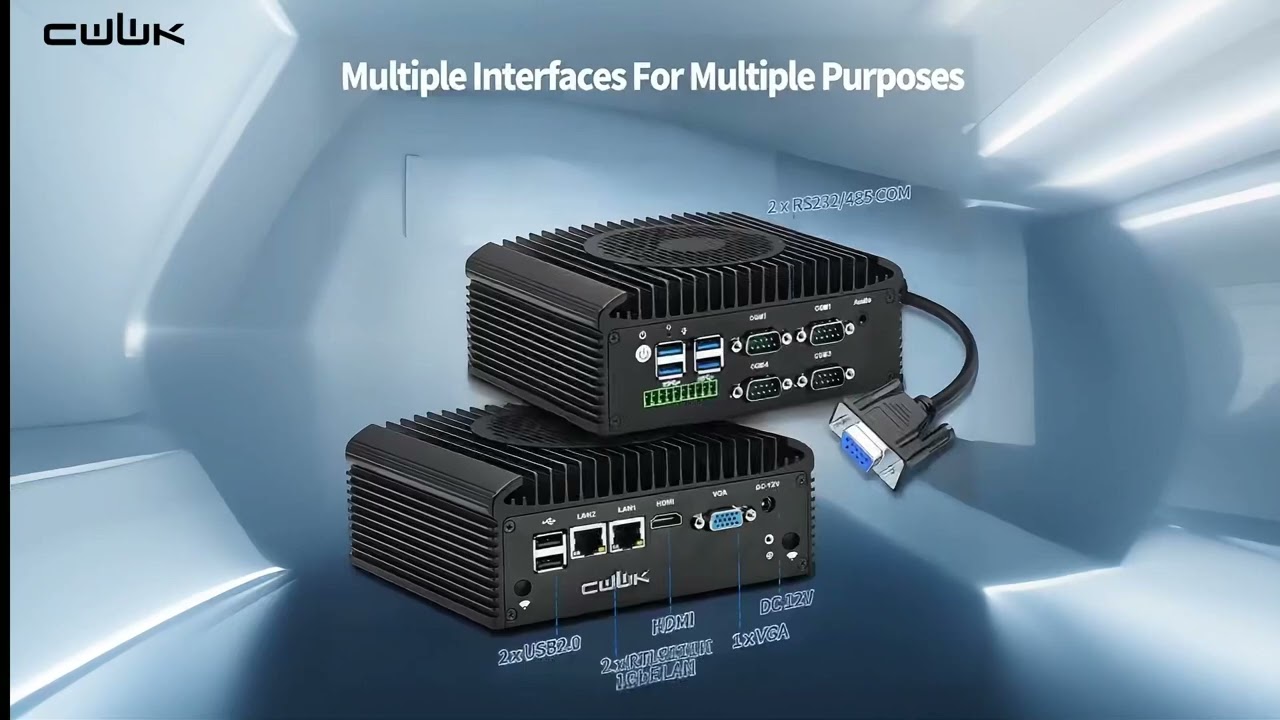

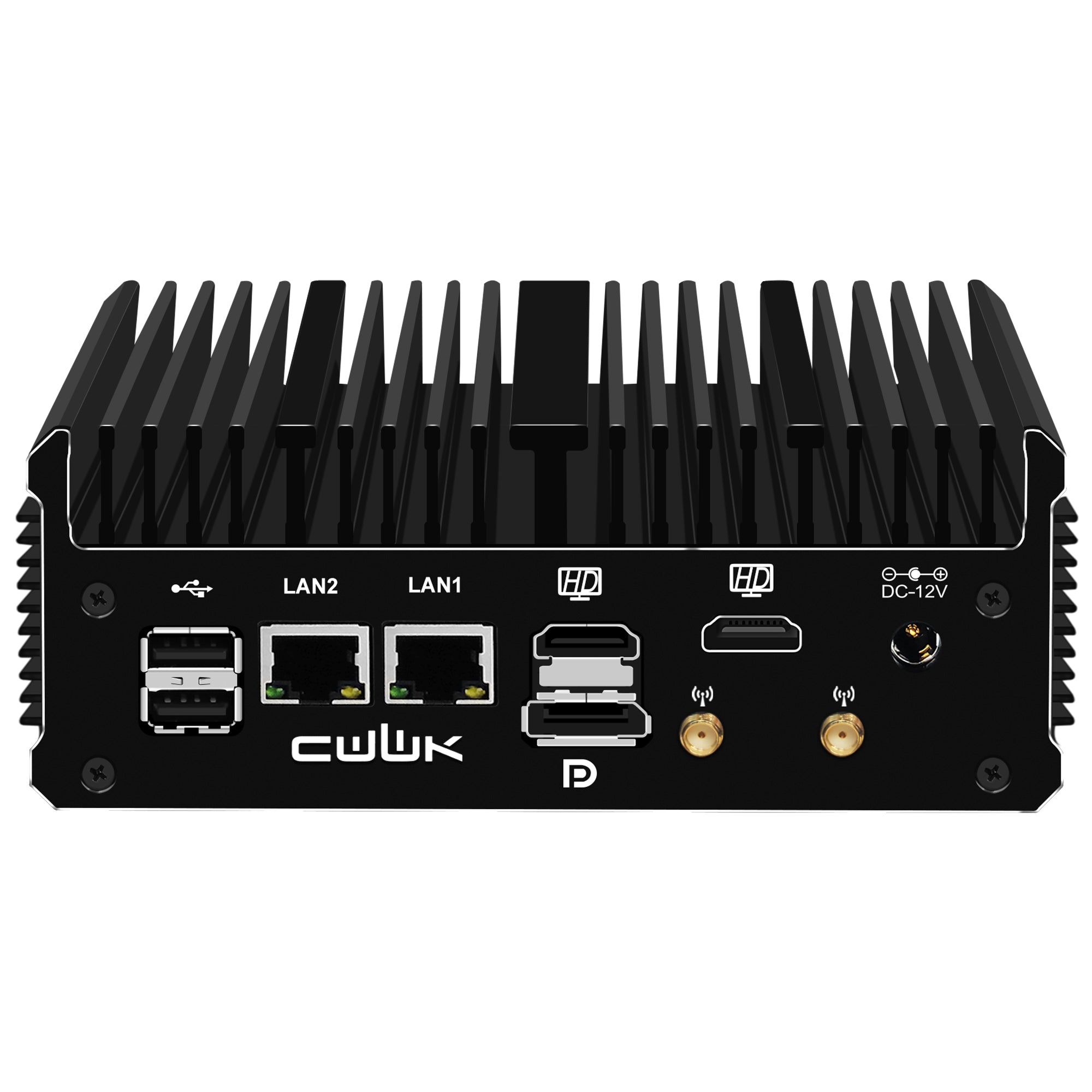

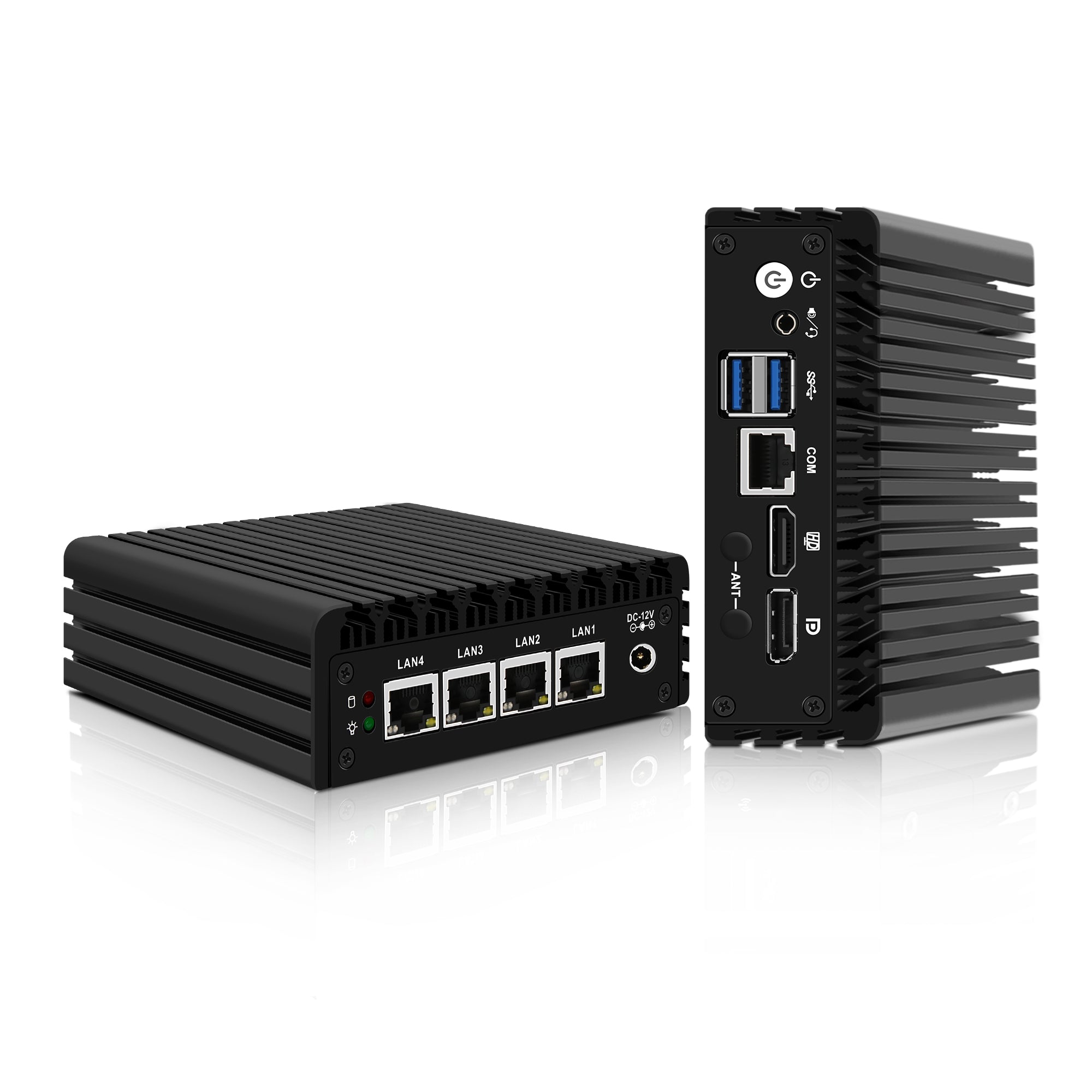

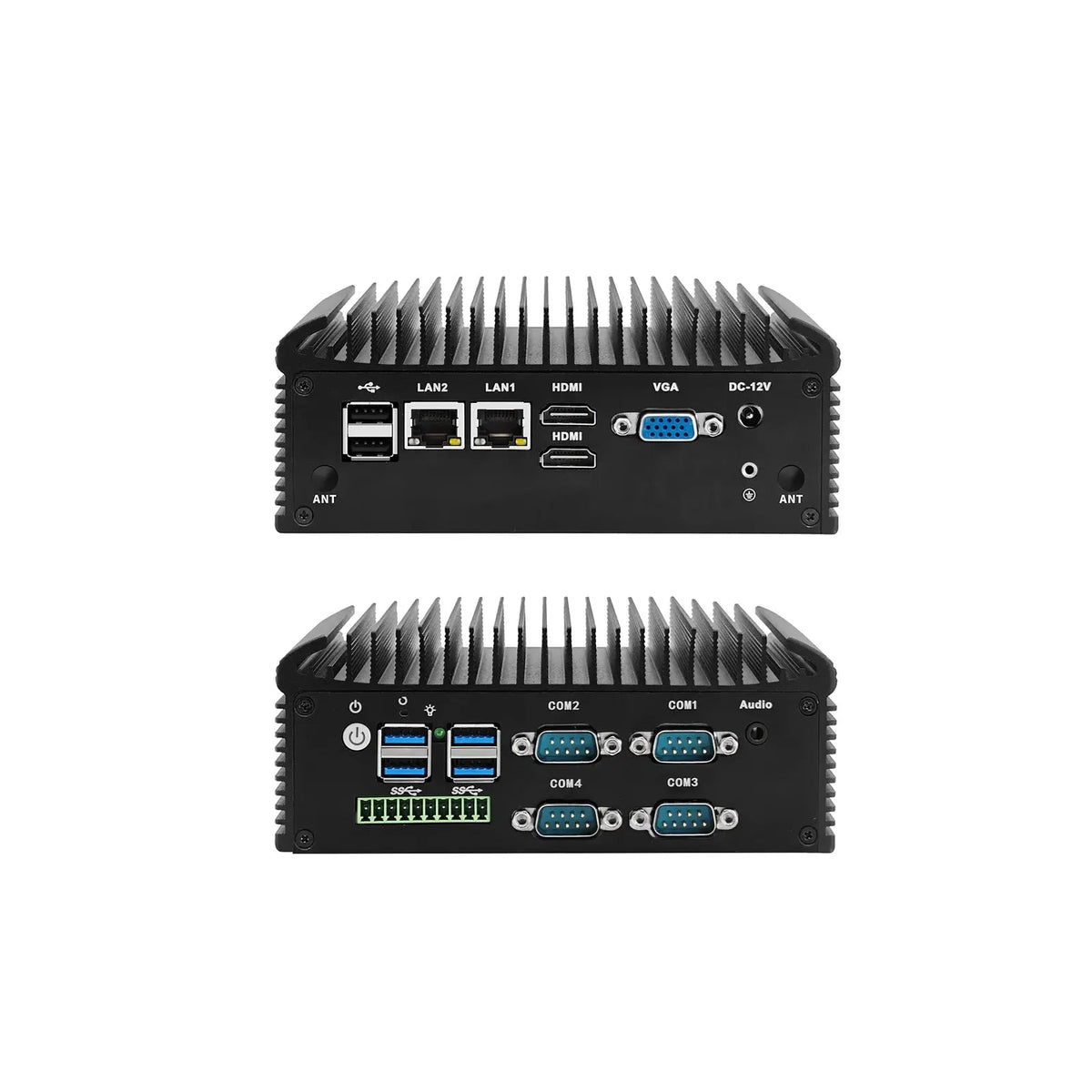

A compact and reliable mini industrial computer featuring multiple l/0 ports for flexible connectivity. ldeal for edge computing automation, security, and data acquisition in space-limited deployments.

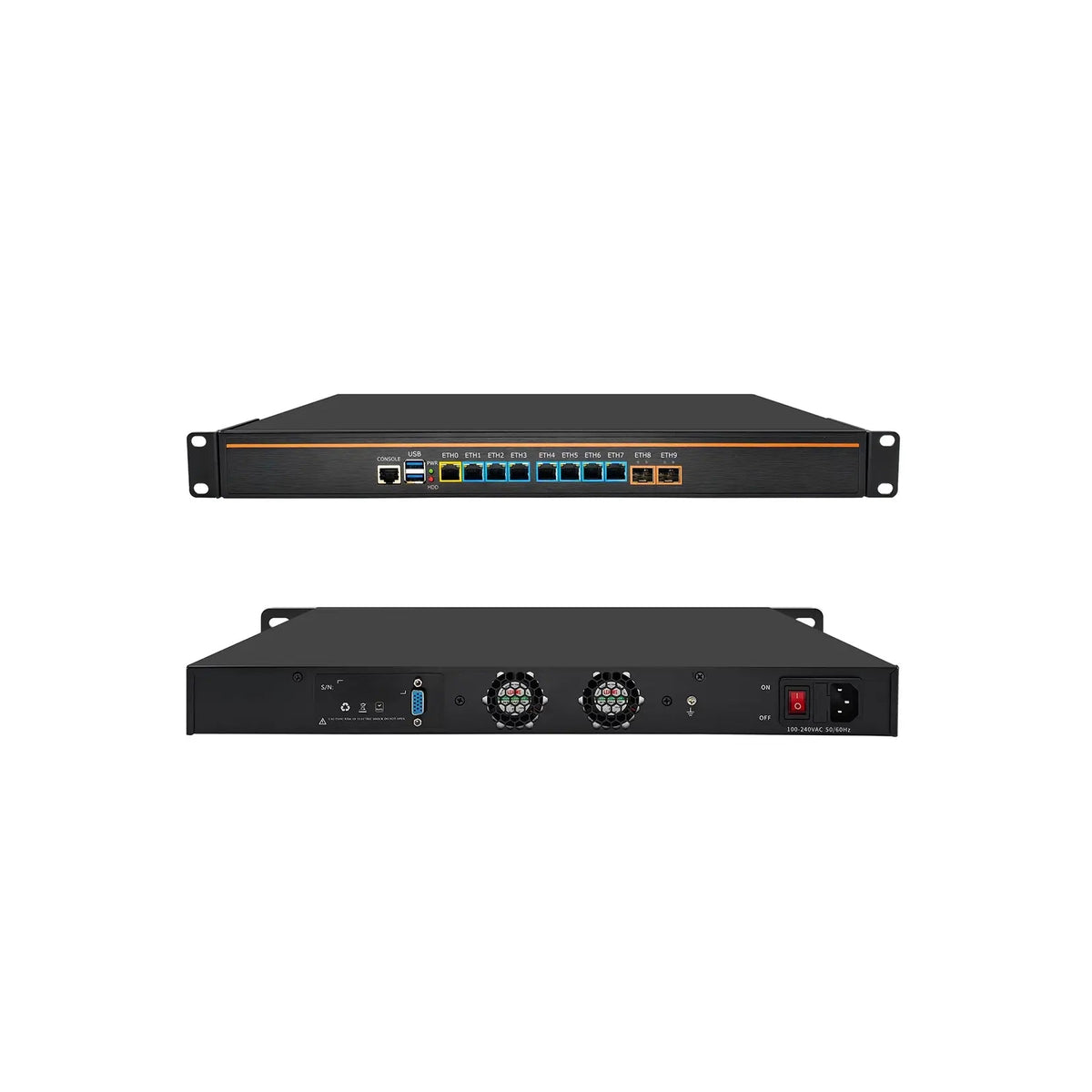

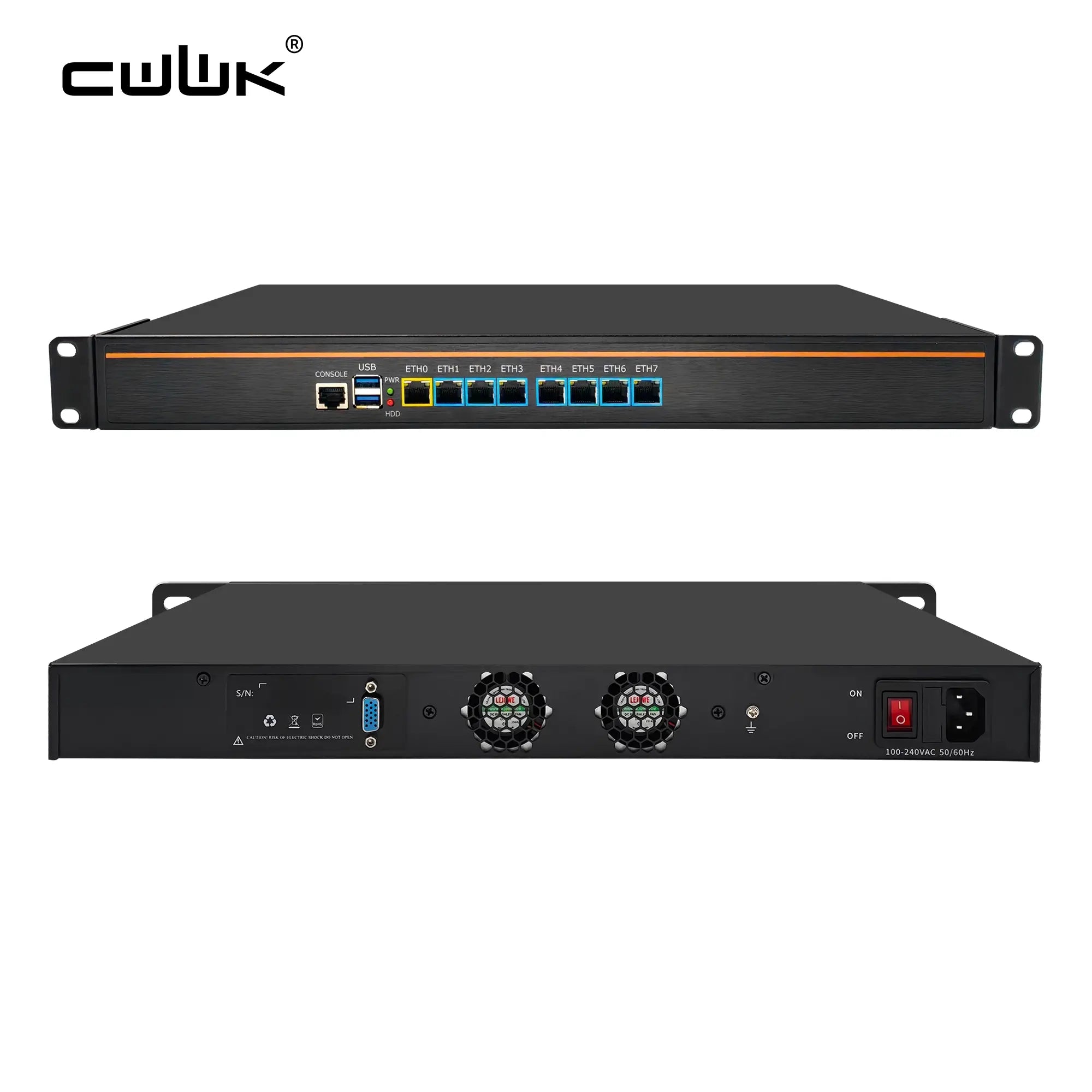

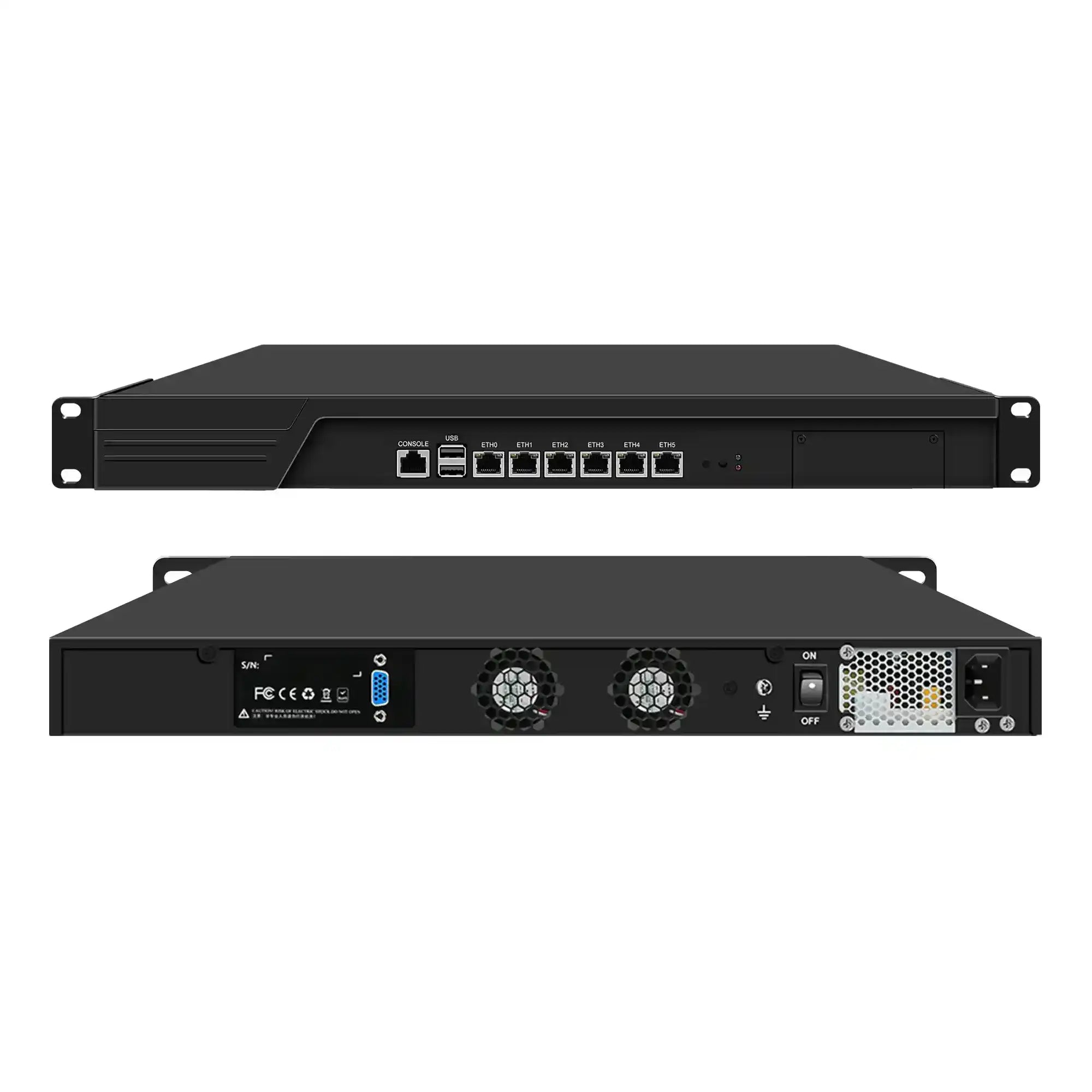

High-performance, space-saving servers for edge computing, cloud processing, and industrial workloads.Supports redundant power supplies and modular expansion.
Reliable, high-speed NAS solutions with RAlD
support, remote access, and industrial-grade
security for data backup and enterprise storage.
An all-in-one touch industrial computer with a rugged design, supporting stable 24/7 operation.
Ideal for factory automation, HMl control, kiosks and industrial environments.
A rugged vehicle-mounted industrial computer engineered for stable operation under shock, vibration, and wide temperature conditions. ldeal for fleet management, ITS, logistics, and real-time
data communication.
Fanless, rugged, and compact, built forautomation, Al, and industrial control. Featureslow power consumption, high-performancecomputing, and extended lifespan for demandingapplications.
A compact and reliable mini industrial computer featuring multiple l/0 ports for flexible connectivity. ldeal for edge computing automation, security, and data acquisition in space-limited deployments.
High-performance, space-saving servers for edge computing, cloud processing, and industrial workloads.Supports redundant power supplies and modular expansion.
Reliable, high-speed NAS solutions with RAlD
support, remote access, and industrial-grade
security for data backup and enterprise storage.
An all-in-one touch industrial computer with a rugged design, supporting stable 24/7 operation.
Ideal for factory automation, HMl control, kiosks and industrial environments.
A rugged vehicle-mounted industrial computer engineered for stable operation under shock, vibration, and wide temperature conditions. ldeal for fleet management, ITS, logistics, and real-time
data communication.

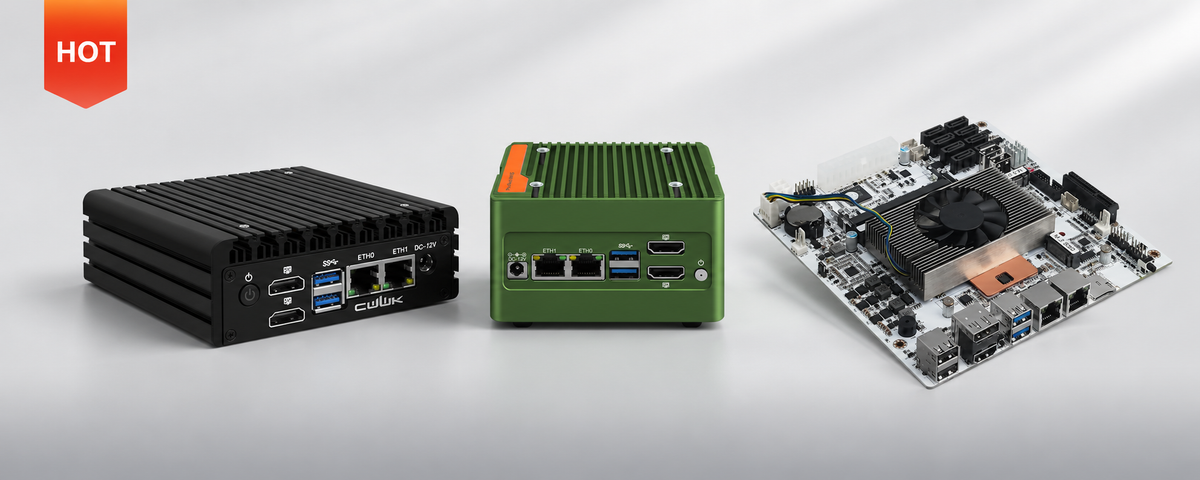

Hot Sale
Description

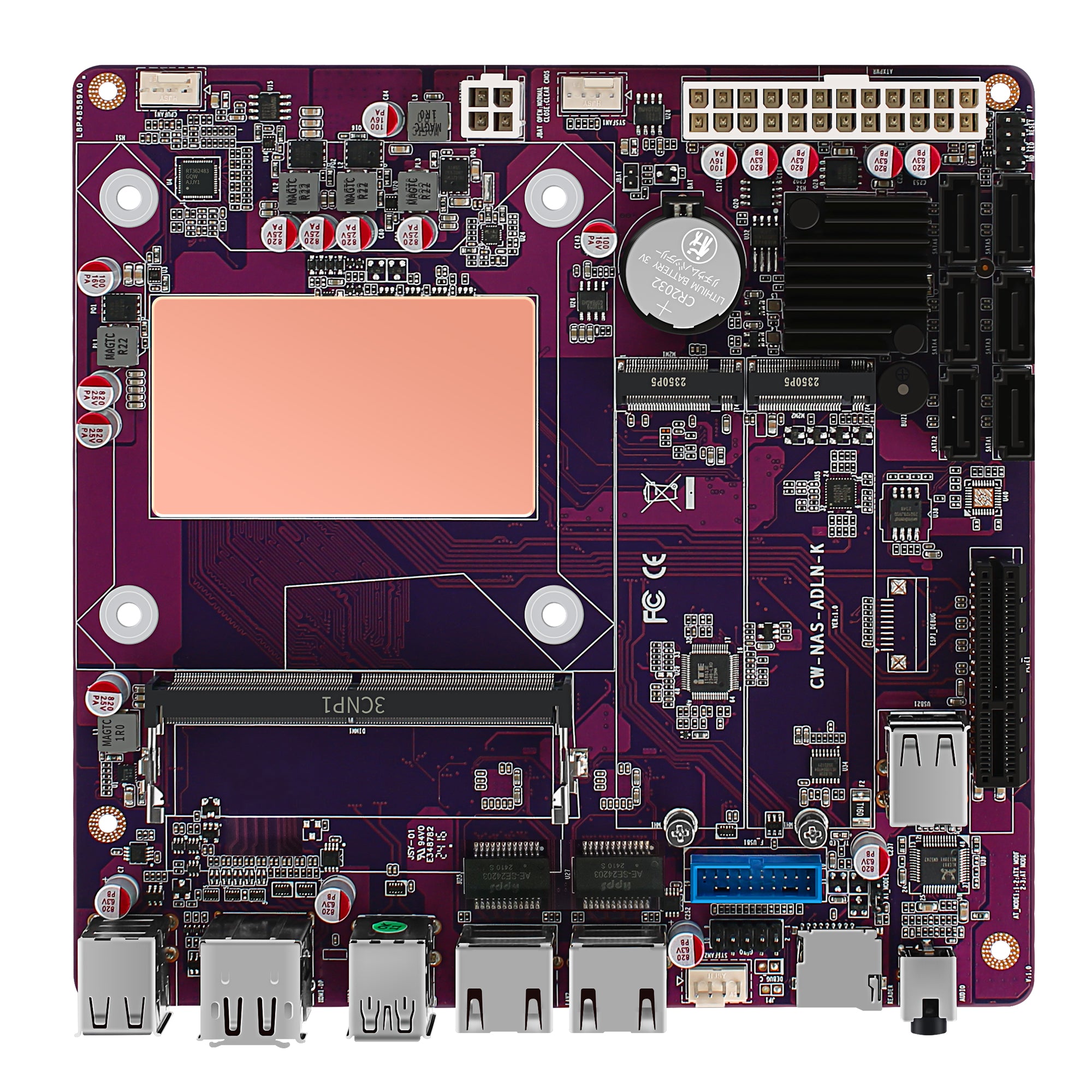

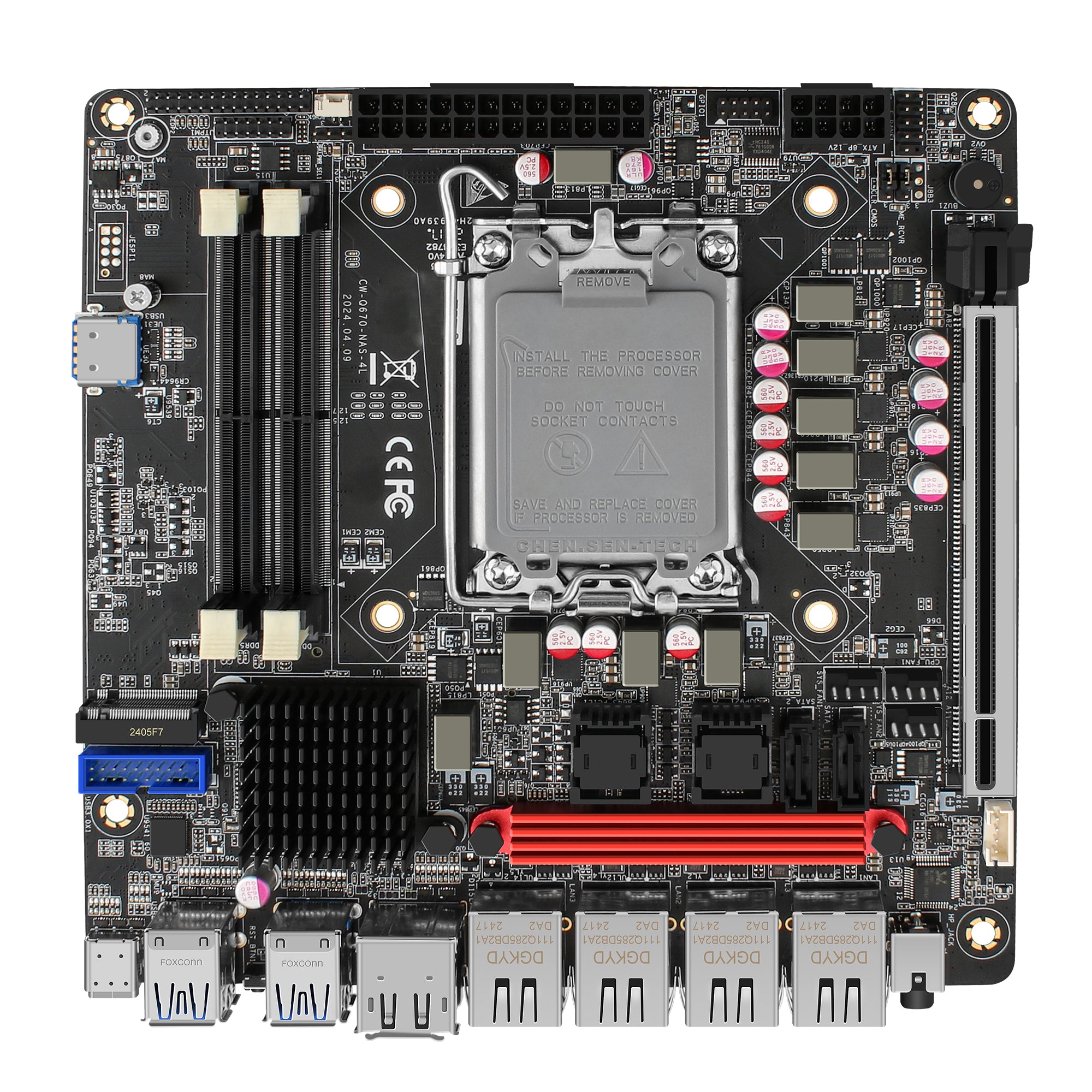

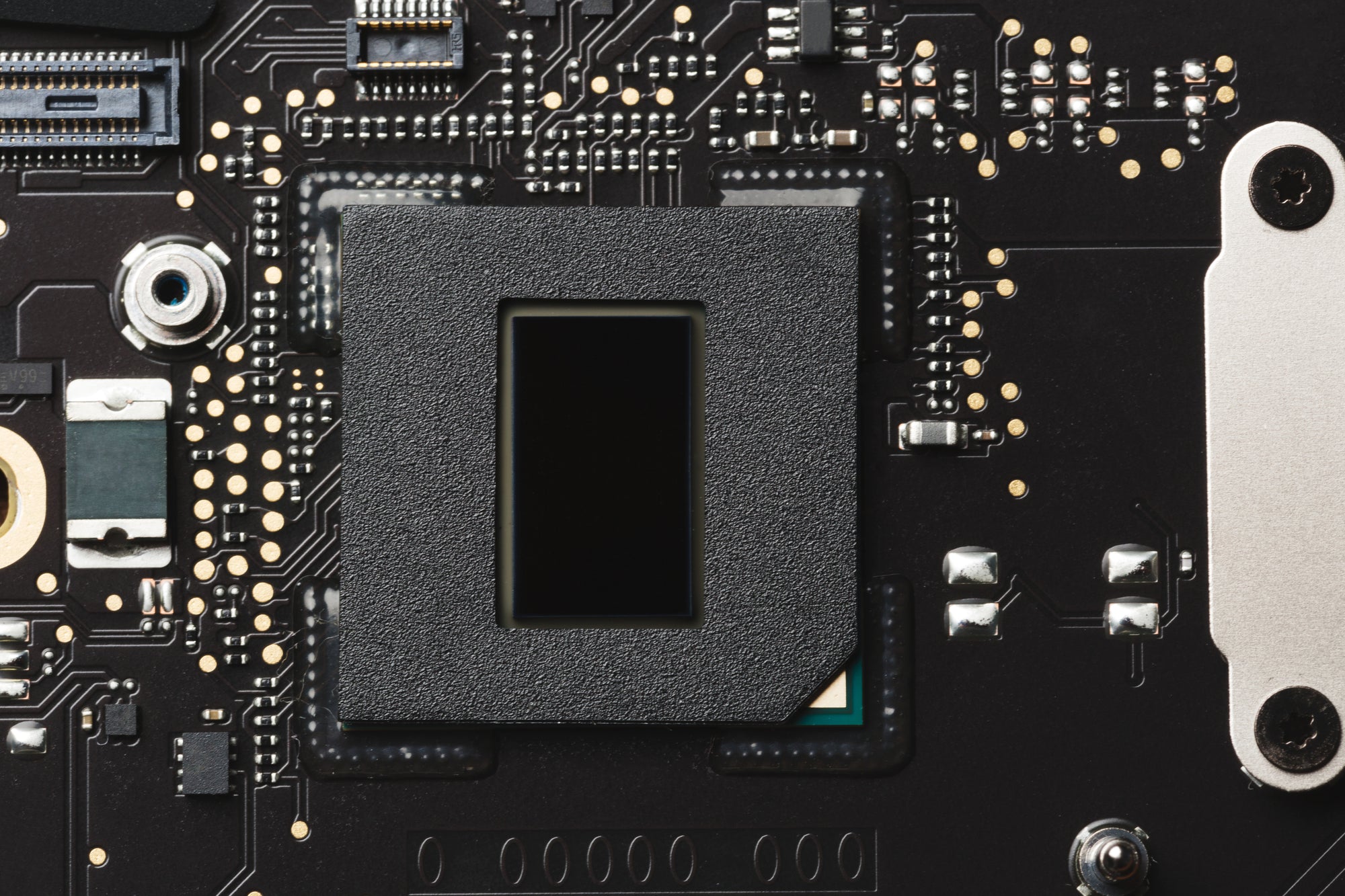

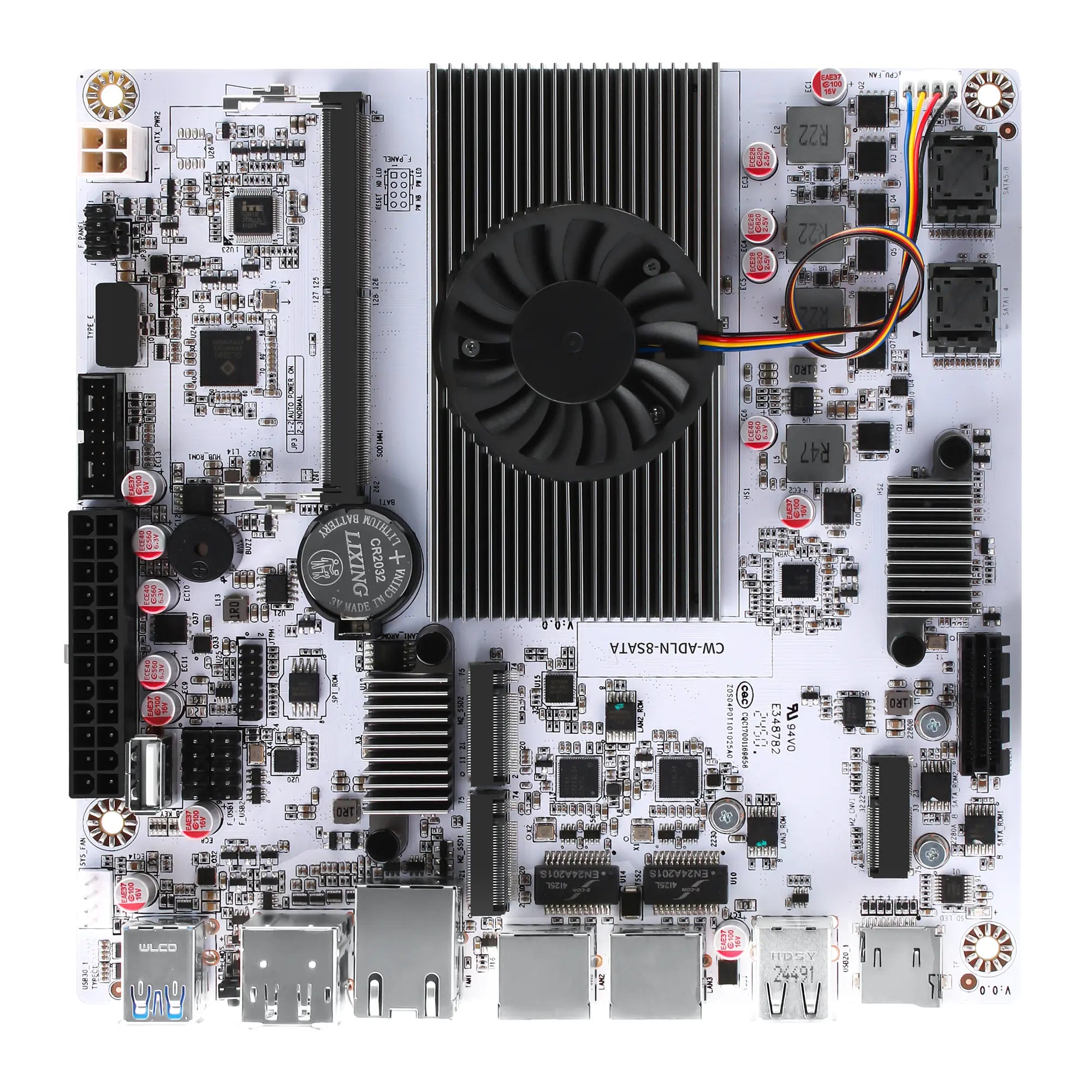

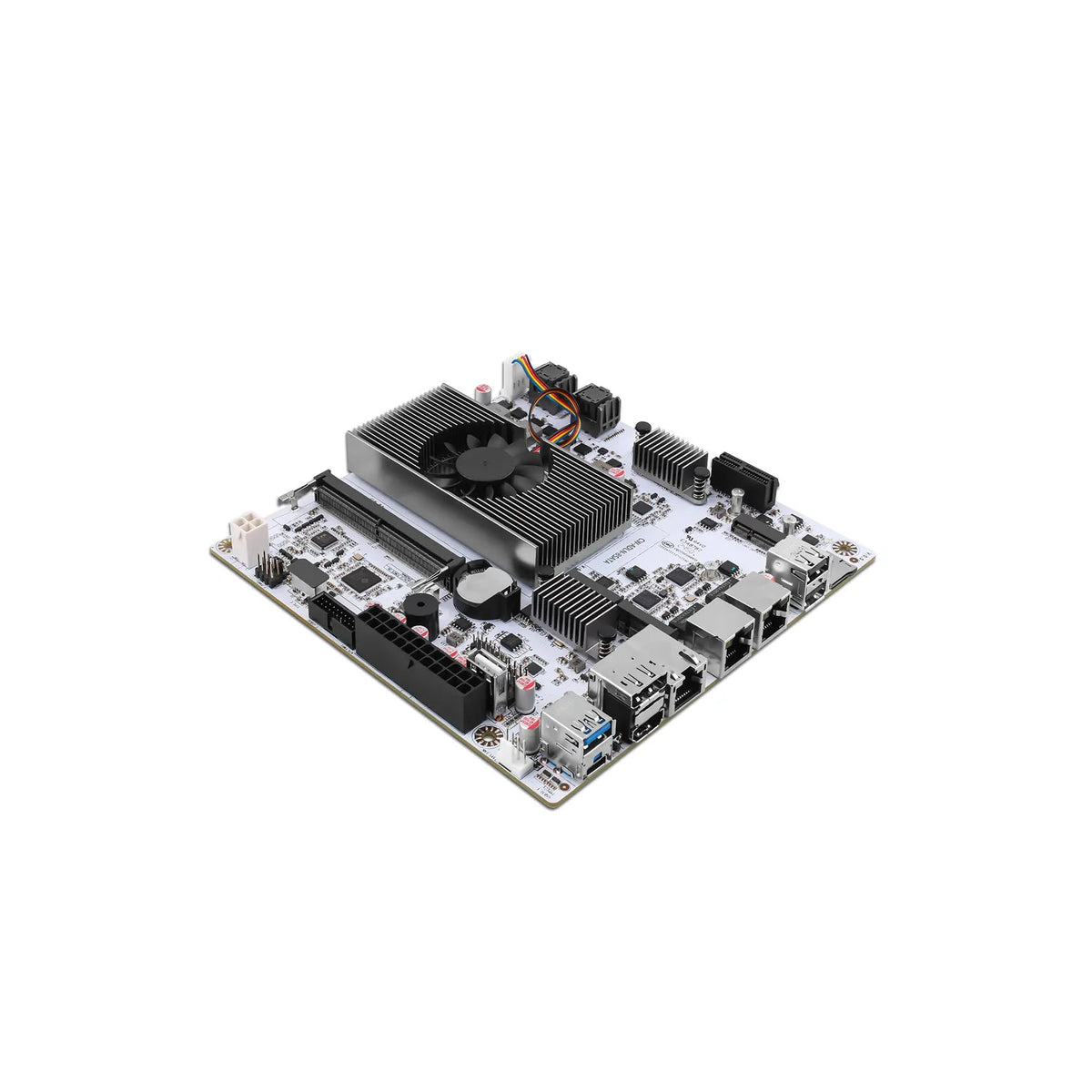

Motherboard core features
Equipped with AMD "Zen 4" architecture Ryzen ™5/7/9 series high-performance processors
17x17 standard Mini-ITX form factor compatible with 1700 series CPU coolers
1 PCI-E x16 slot PCle4.0 x8 signal supports expansion of graphics card/network card etc.
2 M.2 NVMe(PCle4.0 x2) slots 2280 size
2 SFF-8643 sockets support one to four via cable and support 9 SATA3.0
Dual-channel SO-DIMM DDR5 slot supports 5600MHz backward compatibility by default
Dual-channel SO-DIMM DDR5 slot supports server-grade ECC notebook strip
4 Intel i226-V 2.5G RJ45 UDE network ports support AllinOne and other applications
HDMI+DP+Type-C triple display output supports 4K@60Hz
3 USB3.2+1 Type-C (USB4) interface 20Gbps rate
Built-in set of USB3.2 pin sockets can be connected to the panel through connecting cables
Built-in two USB2.0 sockets support U disk encryption and other applications and partial system boot
Specifications
Motherboard features:
Matte black PCB
High-density moisture-free fiber 10-layer circuit board
Full protection (supports all USB, audio, network interfaces)
processor:
AMD Ryzen 7 7735HS 8(Threads:16) 16M Cache, Up to 4.8GHz
AMD Ryzen 5 7640HS 6(Tnreads.12) 16M Cache, Up to 5.0GHz
AMD Ryzen 7 7840HS 8(Threads:16) 16M Cache, Up to 5.1GHz
AMD Ryzen 9 7940HS 8(Threads:16) 16M Cache, Up to 5.2GHz
Network card: 4*Intel i226-V 2.5G RJ45 electrical port
Memory:
Support SO-DIMM DDR5 memory technology
2*SO-DIMM DDR5 memory slot
DDR5 supports 5600 by default and is compatible with 4800/5200MH2
Maximum capacity of single memory: 32GB Maximum capacity of dual channel: 64GB
Internal storage
2*M.2 NVMe PCle 4.0 x2 signal, one on the front and one on the back (2280)
2*SFE-8643 One to four, a total of 9 SATA3.0 (6Gbps)
TDP: basic power consumption (35-54W)
Power supply method: ATX 24PIN+8PIN (it is recommended to use a power supply of more than 500W with 9 disks)
Onboard interface:
2 * SFF 8643 socket (supports one to four SATA3.0)
1*SATA3.0 socket
1*SATA 4PIN power supply socket
2*USB2.0 socket
1*PCI-E x16 slot (x8 signal)
1*JC0M needle
1*FPANEL switch LED/PWR pin
1 * 4PIN fan power supply pin 2.54 pitch
1*TPM pin header
1*USB2.0 pin
1*USB3.2 pin
2*M.2 NVMe PCIE4.0 x2 2280
1 * ATX 24+8PIN power supply socket

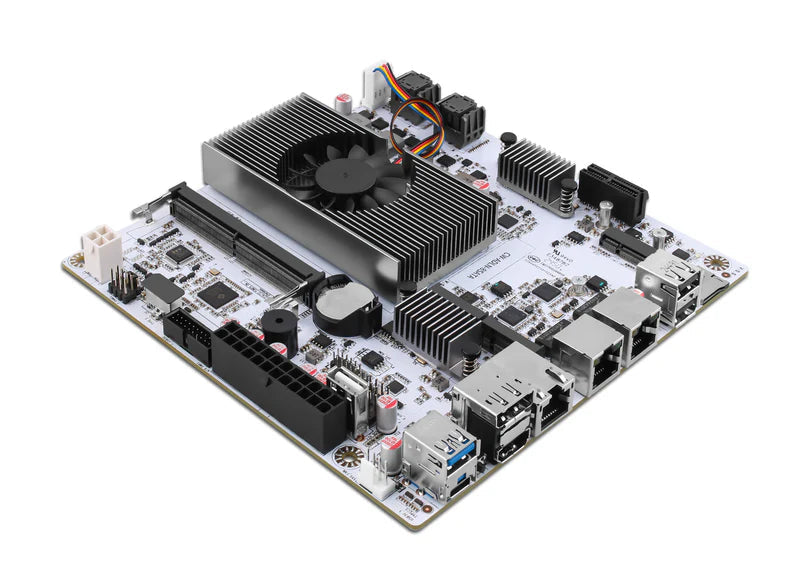

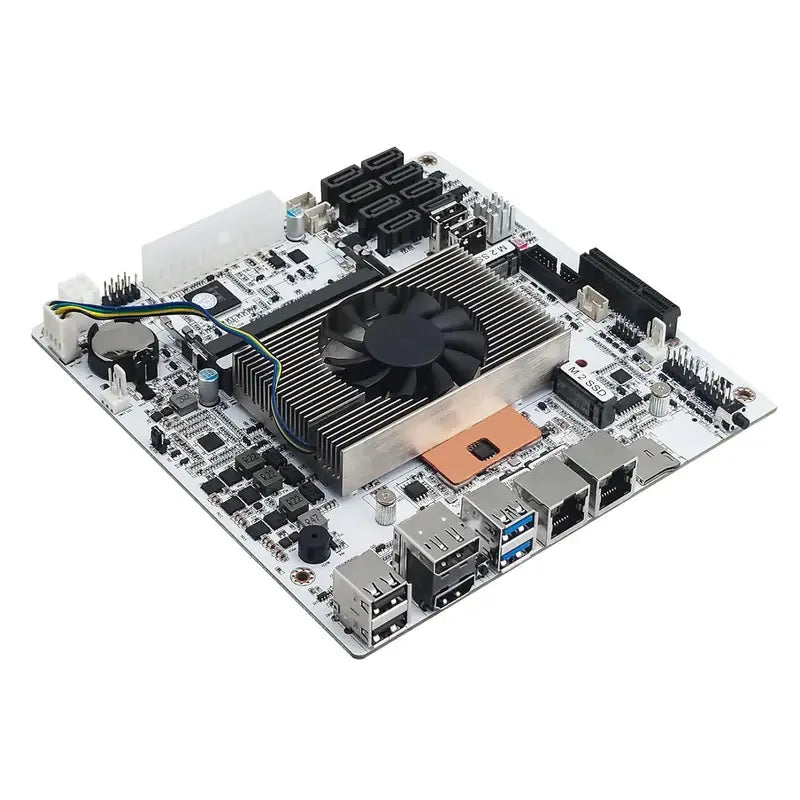

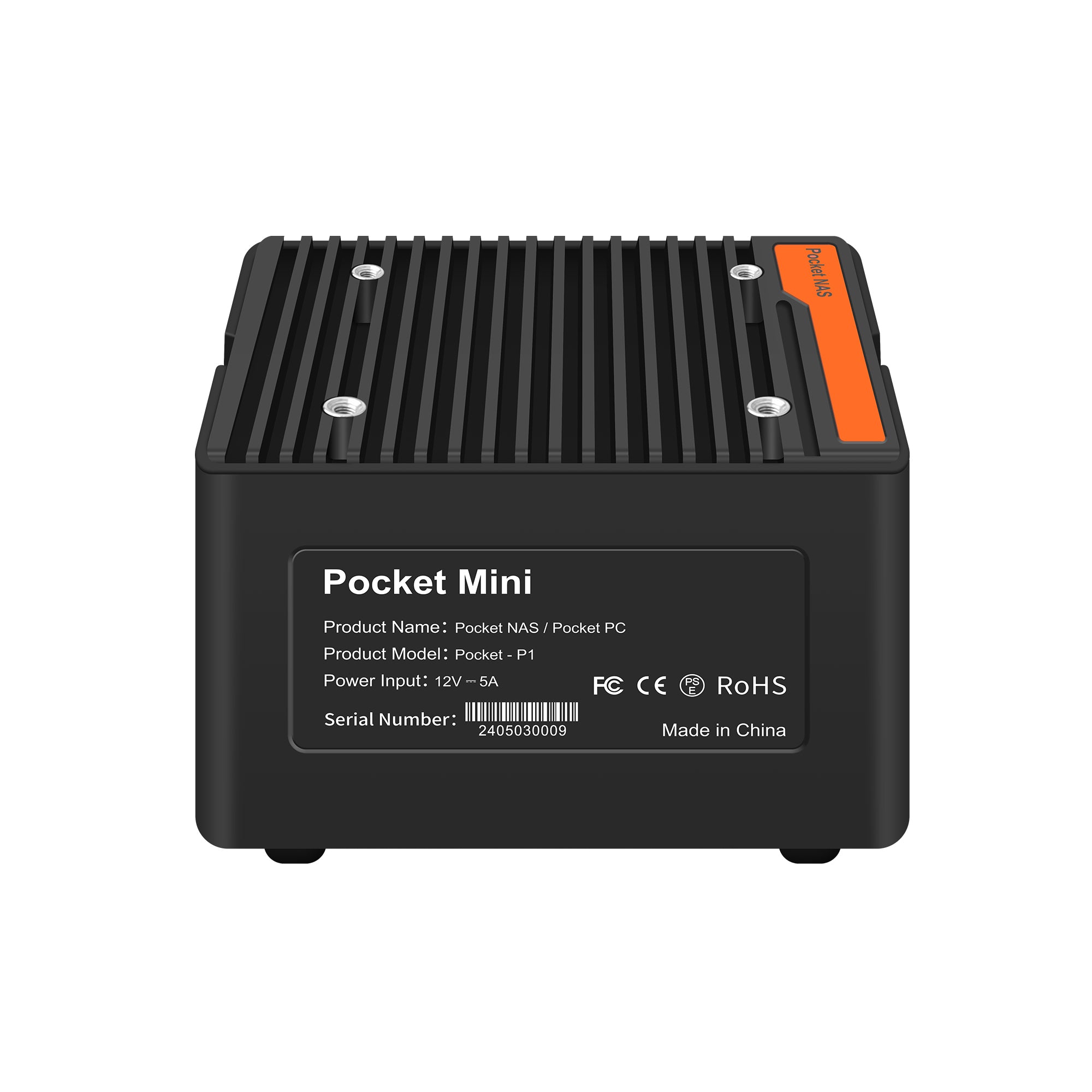

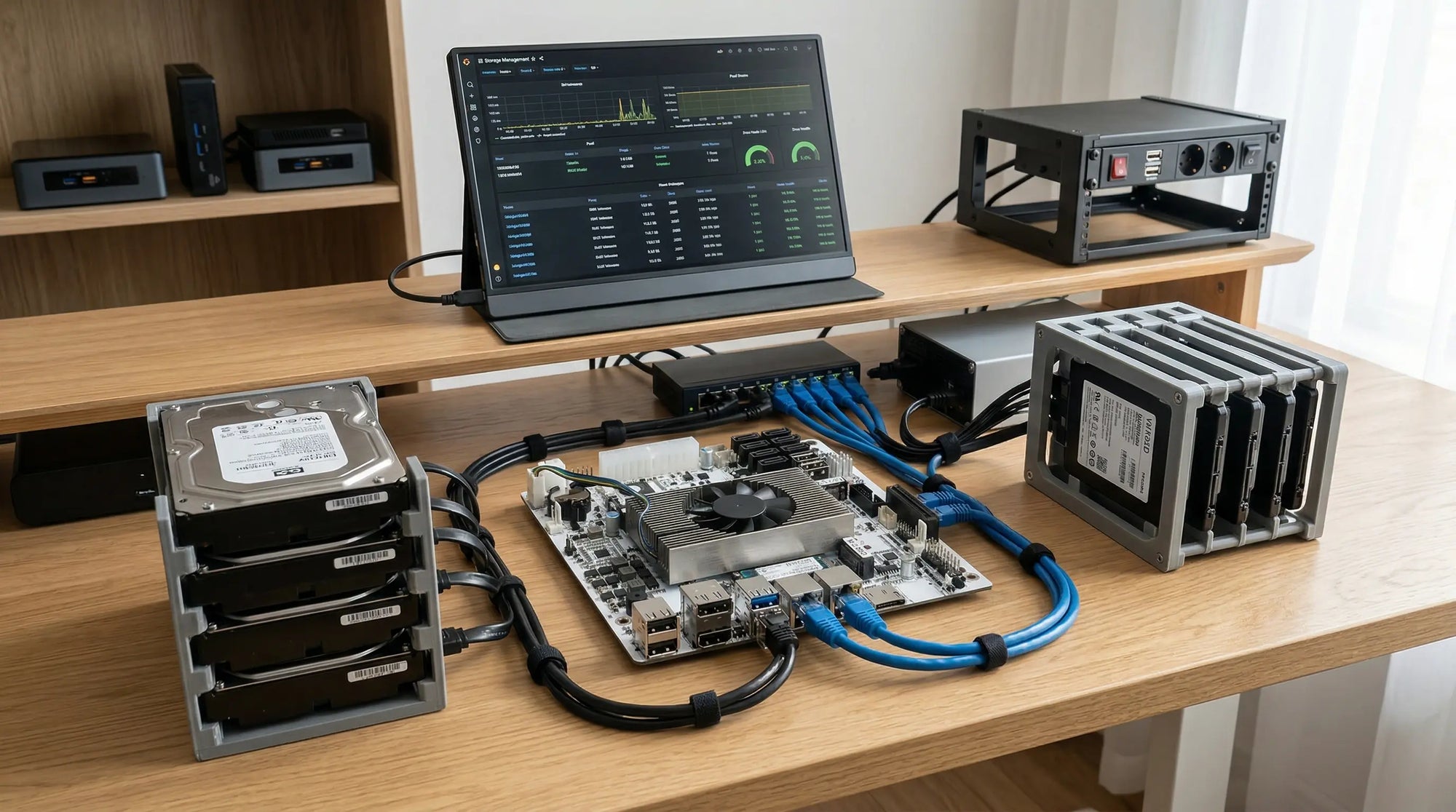

Featured NAS
- Two colors are available: black/green
- Install any software: All Vaults are OS agnostic and support a variety of popular open source software distributions like OPNsense, pfSense, and others. Optionally choose to have an OS preinstalled by us during configuration.
- Ample Storage Solutions: The built-in adapter board (PCIe 3.0 x4) expands to 4 x M.2 NVMe 2280 drives and supports RAID capabilities, providing big space for all your files, music, and videos. DDR5 4800MHz RAM (up to 48GB) for smooth multitasking
- Versatile Connectivity: Featuring an M.2 E Key slot for BT5.4/WiFi6/WiFi7 modules, dual i226V 2.5G RJ45 Ethernet ports, 2 x HD 2.0 outputs (4K@60Hz), and 2 x USB 3.2 (Gen2 10Gbps). Enjoy electricity bills low while meeting your computing needs
- Compact & Portable Design: With dimensions of 10cm x 10cm x 5.85cm is about 4% smaller than traditional tower cases. Its portable design fits easily in your pocket or on your desktop, allowing you to access and manage your data and cloud storage anywhere
Shop CWWK NAS Now→
Before
After
About us
10+
History of CWWK
89+
Countries
80%
Showcase a benefit of your product
CWWK: Innovating Mini Computing Since Day One,breaking the boundaries of what a compact device can do.
Founded in 2015, CWWK has been providing industrial computing solutions for over 15 years.
Businesses in 89 countries trust our technology to keep their operations running.
80% reorder rate reflecting our commitment to quality and reliability.
Whether automating factories, securing networks, or processing data at the edge, CWWK delivers solutions that work - every time.
